- Place of Origin: jiaxing,zhejiang
- Brand Name: tooken
- Model Number: TJ-

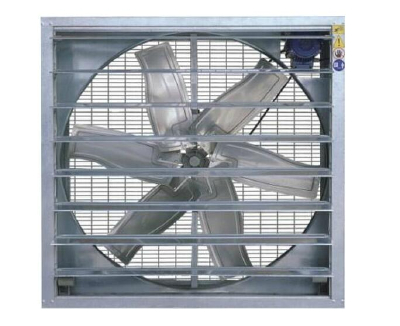

Galvanized Sheet Negative Pressure Fan)
Features:
1.Frame is galvanized sheet material and blades made of aluminum and magnesium alloy,light weight ,good toughness.
2.Efficient motor, 0.75KW, efficient energy.
3. Four-point fixing bracket, motor fixed more firmly.
4 machine with stainless steel screws, anti-corrosion.
5. Using the safety net, and to prevent foreign object invasion, to increase security.
parameters
Model number TJ-32 TJ-35 TJ-40 TJ-44 TJ-56
Leaf blade diameter 90 100 110 125 140
Leap blade revolving 600 600 480 440 440
speed(r/min)
Motor revolving 1400 1400 1400 1400 1400
speed(r/min)
Air Volume(m³/h): 32000 35000 40000 44000 55800
Power(w): 750 750 1100 1100 1500
Voltage(v) : 380 380 380 380 380
Size(cm): 100*100*40 110*110*40 122*122*40 138*138*40 153*153*40
Height、width、thickness
